Concrete Batching Plants
Leading Manufacturers, Exporters, Wholesaler and Retailer of Twin Shaft Concrete Batching Plants, Fly Ash Bricks Batching Plant, Mini Mobile Concrete Batching Plant and Reversible Concrete Batching Plant from Ganganagar.
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Output Capacity | 30 cum / Hr. |
| Output Rate | 28-30 cum / hr. |
| Batch Capacity | 500 Ltr. |
| Main Mixer Drive | 2x 12.5 HP |
| Aggregate Compartments | 3 Nos. |
| Conveyor Motor (Gathering) | 5 HP |
| Conveyor Motor (Slinger) | 7.5 HP |
| Cement Screw Con. Motor | 10 HP |
| Water Pump | 2 HP |
| Air Compressor Motor | 2 HP |
| Admix Pump | 0.5 HP |
| Vibration Motor | 3 No. x 1/2 HP |
| Mixing Blades | 12 Nos. Anti-Wear Steel (Hardox) |
| Scraper Blades | 2+2 |
Features :
- Fully automatic Twin Shaft Mixer.
- Robust structure with Bins.
- Large mixer platfo rm for ease of maintenance.
- Cabling & wiring of all auxiliary devices (Limit switches & solenoid valves) to a box insta lledon mixer.
- Sand blasting, under coat primer & finish paint.
- Main reduction gear :Epicyclical type.
- Digital load cell based material weighing system.
- Material feeding system through conveyor belts.
- Cement feeding system through inclined screw conveyor.
- Auto add mixture dozing system.
- SCA DA based control panel with integral computerized batch controller which accommodates different mix receipes.
- Hydraulically operated discharge door.

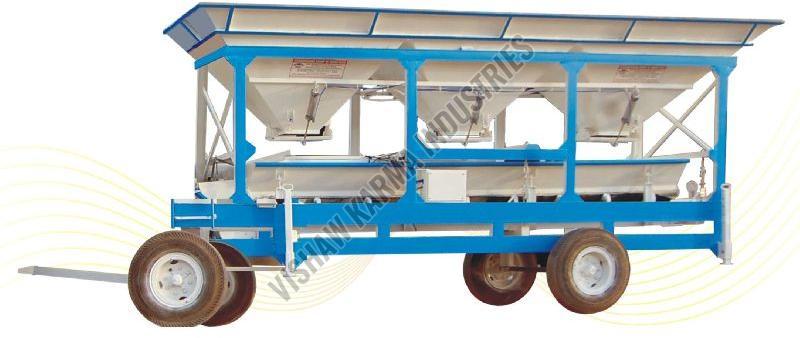

| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Size | Multisizes |
| Type | Fly Ash Brick Plant |
| Application | Construction |
| Color | Standard |
| Feature | Refractory |
| Main Raw Material | Cement, Fly Ash, Stone Dust |
| Hardening Feature | Rapid Hardening |
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Type | Mobile Concrete Batching Plant |
| Weight | Vary as per size |
| Color | Standard |
| Condition | New |
| Automatic Grade | Automatic |
| Driven Type | Hydraulic |

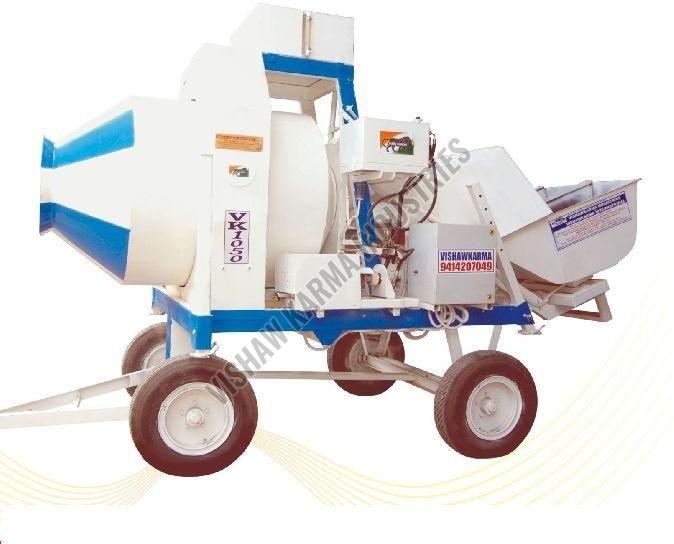

Vishaw Karma Mini Mobile Concrete Batching have Hopper wherein cement. sand & other aggregates are digitally weighed and loaded in its Mixer Drum.
- Smart hopper design to reduce spillage & wastage.
- Automatic water control.
- Options of single, two, three & four Bins.
- Compact design for easy transport and shifting by towing also.
- Printout& USB system.
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Certification | CE Certified |
| Voltage | 220V |
| Condition | New |
| Automatic Grade | Semi Automatic |
| Power | 1-3kw |
| Driven Type | Electric |
| Operation | Easy |
| Product Code | SA-510 |
Features :
- Rust proof body
- Optimum performance
- Long service life
Product Details :
- Reversible non-tilting drum type concrete mixer with (hopper) driven by Auto stop to motor
- Drum rotation reversal is action by push buttons provided on the electric control panel
- The rotating parts are installed on self-lubricating water-tight bearing
- Specially M.S. Casted gear ring & roller, so the machines show high mechanical performance
- The design of the machine allows easy mobility by using given desmant able towing handle. 5 Cum. (SA-505), 10 Cum. (SA-510), 15 Cum. (SA-515) /Hours
- Transmission from three phase motor is done by "V" belts
- Excellent mixing in lesser time due to specially designed scrapper arrangement
- Full machine is Automatic
- Digital type load indicator with sensor in single hopper shows up to 500 gm load
- Digital type water meter with auto cut off-on can be provided on demand
- Digital weighing by load cell with showing separate weights of each and Auto Cut
- Printer can be attached
- With 4 Ton Storage Tank
- Main F.W. R.W. Drum Motor - 10 H.P. Three Phase
- Hopper Motor 7.5 H.P. Three Phase
- Water Pump 1 H.P. Three Phase
- Air Compressor Motor 2 H.P.
- 2 Vibrator Motor 1/2 H.P.
